Stainless steel patterned plate (also named embossed sheet, checkered plate, diamond tread plate) is formed by high-pressure embossing rollers to stamp uniform concave-convex patterns on one side of stainless steel base sheet. It is split into two main categories:
Anti-slip checkered tread plate: Thick plate with raised diamond, lentil or 5-bar grains for industrial flooring, stair treads and marine anti-slip platforms.
Decorative embossed sheet: Thin cold-rolled plate with delicate linen, pyramid, leather, wood grain, water ripple textures for architectural & elevator decoration.
Raw materials cover mainstream austenitic & ferritic stainless steel grades including 201, 304, 304L, 316, 316L, 430. The embossed texture improves surface hardness, hides scratches & fingerprints, enhances anti-slip friction, while retaining stainless steel’s core advantages of corrosion resistance, hygiene and long service life. Supported processing: laser cutting, bending, welding, PVD color coating, custom blanking for construction, food, marine, chemical and public transit projects.
2. Global Equivalent Grade Cross Reference Table
| Standard System | 304 Universal Grade | 316L Marine Grade | 430 Ferritic Grade | Executive Standard |
| USA UNS/ASTM | UNS S30400 / AISI 304 | UNS S31603 / AISI 316L | UNS S43000 / AISI 430 | ASTM A240, ASTM A793 |
| Japan JIS | SUS304 | SUS316L | SUS430 | JIS G4305, JIS G4304 |
| European EN | X5CrNi18-10 / 1.4301 | X2CrNiMo17-12-2 / 1.4404 | X6Cr17 / 1.4016 | EN 10088-2 |
| China GB | 06Cr19Ni10 | 022Cr17Ni12Mo2 | 10Cr17 | GB/T 3280, GB/T 4237 |
Grade Selection Guide
201: Low-cost indoor decorative embossed sheets, weak anti-corrosion, only for dry interior decoration
304: Universal mainstream grade, balanced rust resistance & cost, for most decoration, food factory, indoor anti-slip floors
304L: Low-carbon variant, for frequently welded patterned plates to avoid intergranular corrosion
316L: Molybdenum-containing, superior chloride resistance, for coastal, marine, chemical plant anti-slip platforms
430: Nickel-free ferritic, low cost, magnetic, for household appliance decorative panels
3. Chemical Composition (wt%, Core Grades Standard Limits)
304 (1.4301) Base Material
| Element | C | Si | Mn | P | S | Cr | Ni | N | Fe |
| Limit | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 18.00–20.00 | 8.00–10.50 | ≤0.10 | Balance |
316L (1.4404) Marine Grade
| Element | C | Si | Mn | P | S | Cr | Ni | Mo | N | Fe |
| Limit | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.00–18.50 | 10.00–14.00 | 2.00–3.00 | ≤0.10 | Balance |
430 (1.4016) Ferritic Grade
| Element | C | Si | Mn | P | S | Cr | Ni | N | Fe |
| Limit | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 16.00–18.00 | ≤0.75 | ≤0.040 | Balance |
Composition Core Advantages
304 18Cr-8Ni austenite structure forms self-repairing passive film, anti-rust in atmospheric & fresh water environments;
316L extra molybdenum element drastically improves anti-salt-spray & anti-pitting performance for coastal & chemical media;
430 nickel-free formula reduces raw material cost, stable performance for indoor decorative embossed sheets;
Strict low S&P control prevents cracking during embossing, bending and welding processing.
4. Physical & Mechanical Properties (Annealed Base Plate)
4.1 Basic Physical Properties (304 as Standard Reference)
Density: 7.93 g/cm³
Melting range: 1398 ~ 1454 ℃
Thermal conductivity: 16.2 W/m·K
Linear expansion coefficient (20–200℃): 17.2 ×10⁻⁶ /℃
Elastic Modulus E: 193 GPa
Shear Modulus G: 72 GPa
Poisson’s Ratio: 0.24
Magnetism: 304 non-magnetic after annealing, slight magnetism after embossing; 430 fully permanent magnetic
4.2 Mechanical Performance Index
| Test Item | 304 Standard Min. | 316L Standard Min. | 430 Standard Min. |
| Tensile Strength | ≥515 MPa | ≥485 MPa | ≥450 MPa |
| 0.2% Yield Strength | ≥205 MPa | ≥170 MPa | ≥205 MPa |
| Elongation (50mm gauge) | ≥40% | ≥40% | ≥22% |
| Max HB Hardness | ≤201 HB | ≤207 HB | ≤183 HB |
Special Performance of Patterned Plate
Embossing process improves surface compressive strength & wear resistance, higher scratch resistance than plain flat sheet;
Raised grain structure increases friction coefficient, excellent anti-slip effect under water, oil and wet working conditions;
Concave-convex texture effectively hides surface fingerprints, minor scratches and stains, lowering daily maintenance difficulty.
5. Standard Sizes, Thickness & Supply Forms
5.1 Thickness Classification
Thin Decorative Embossed Sheet (Cold Rolled): 0.3mm ~ 2.5mm
Heavy Anti-Slip Checkered Tread Plate (Hot/Cold Rolled): 2.5mm ~ 12.0mm
5.2 Standard Width Sizes
1000mm, 1219mm (4ft), 1250mm, 1500mm, 1524mm (5ft),1800mm,2000mm
5.3 Standard Fixed Lengths
2000mm, 2438mm (8ft), 3000mm, 6000mm
5.4 Popular Finished Panel Sizes
1000×2000mm
1219×2438mm (4×8ft universal export size)
1500×3000mm

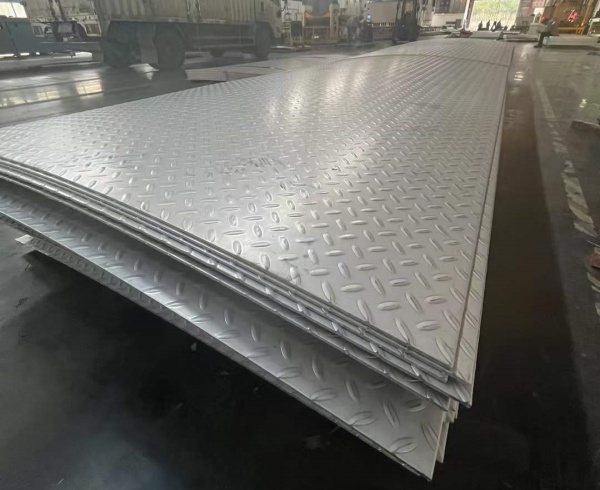

5.5 Supply Forms
Full-width coil, slit narrow coil, cut flat sheets, custom laser-cut blanks
5.6 Thickness Tolerance
Cold rolled thin embossed sheet: ±0.02 ~ ±0.05mm
Hot rolled thick checkered plate: ±0.3 ~ ±1.0mm
6. Main Pattern Types (Two Major Series)

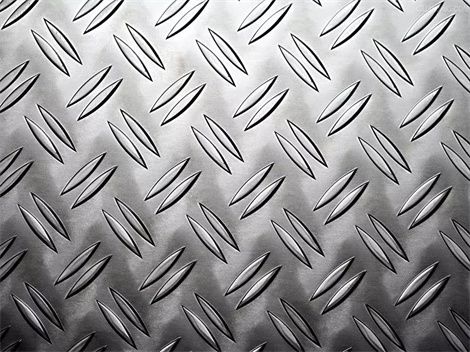

Series 1: Industrial Anti-Slip Checkered Tread Patterns

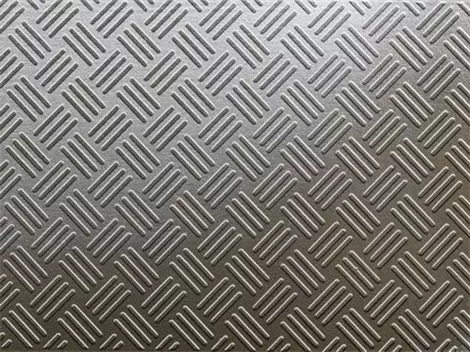

●5-Bar Willow Leaf Pattern: Industry standard, highest anti-slip friction, widely used for factory platforms, stair treads
●Lentil / Single Oval Pattern: Medium anti-slip, balanced load capacity, for food workshops & cold storage floors
●Diamond Lozenge Pattern: Uniform symmetrical grains, good load-bearing, marine deck & ship walkway dedicated
●Circle Dot Stud Pattern: Low grain height, easy trolley rolling, warehouse loading ramps
Series 2: Decorative Embossed Textures
●Linen grain, pyramid cube, leather texture, water ripple, wood grain, wave stripe, small cube, antique carved texture, customizable exclusive patterns per customer design
7. Standard Surface Finishes
●2B Matte Finish (Most Popular) Cold rolled annealed & pickled silver matte, suitable for all anti-slip tread plates & general decorative embossed sheets, easy secondary processing.
●BA Bright Annealed Surface Semi-bright smooth base, for high-end decorative embossed panels without coloring.
●No.1 Hot Rolled Pickled Surface Gray matte thick plate surface, only for heavy industrial anti-slip plates over 3mm.
●No.4 Hairline Brushed Base Linear grain substrate, embossed then brushed, elevator decorative wall panels.
●8K Mirror Base Embossed Sheet Mirror polished substrate + embossing, luxury decorative facade, hotel & mall interior decoration.
●PVD Colored Embossed Surface Titanium gold, black titanium, rose gold, bronze coated, anti-fingerprint treatment optional, high-end architectural decoration.
8. Common Edge Types
●Sheared Straight Edge Standard cutting edge, slight tiny burr on bottom side, universal for large-format patterned plates.
●Laser Cut Burr-Free Edge Ultra-smooth clean edge, high precision for custom shaped decorative parts & special anti-slip components.
●Deburred Ground Edge All burrs removed by grinding, safe for food processing, medical equipment and hand-touch public facilities.
●Chamfered / Rounded Edge 45° chamfer or full round edge, prevent scratching operators and matching sealing assembly.
9. Core Product Features
Outstanding Anti-Slip Safety Performance Raised grain structure greatly increases surface friction coefficient, effectively avoid slipping under wet, oily, watery working environments, ideal for stair treads, factory platforms and ship decks.
Enhanced Wear & Scratch Resistance Embossing cold work hardens the surface, texture hides minor scratches, fingerprints and stains, reducing cleaning frequency.
Excellent Corrosion & Hygienic Property Same stainless steel anti-rust performance as plain sheet; 304/316L comply with food contact standards, suitable for food processing workshops.
Rich Decorative Customization Dozens of embossed textures & PVD color options, match elevator, curtain wall, ceiling, furniture high-end decoration demands.
Stable Mechanical Load Capacity Checkered tread plate improves structural rigidity under equal thickness, saves material cost for load-bearing flooring projects.
Wide Processing Adaptability Support laser cutting, bending, stamping, welding, polishing, color coating, fully meet customized fabrication requirements.
Long Service Life & Low Maintenance Self-passivation anti-rust film, no painting required, wear-resistant and aging-resistant for indoor & outdoor long-term use.
10. Typical Application Fields
10.1 Industrial Anti-Slip Flooring & Platforms
Factory walkways, equipment operation platforms, stair treads, warehouse loading ramps, cold storage anti-slip floors, mechanical equipment pedal boards.
10.2 Marine, Port & Coastal Engineering
Ship deck panels, offshore auxiliary platforms, dock walkways, coastal factory anti-slip floors (316L grade recommended).
10.3 Food, Beverage & Sanitary Workshop
Food processing plant floors, kitchen anti-slip ground, dairy production line platforms, slaughterhouse wet area tread plates.
10.4 Architectural & Elevator Decoration
Elevator car wall panels, ceiling decorative sheets, building curtain wall cladding, hotel lobby decorative panels, indoor partition embossed plates.
10.5 Public Transportation & Municipal Facilities
Subway station walkways, airport pedestrian stairs, bus station anti-slip floors, pedestrian bridge tread plates.
10.6 Household Appliance & Furniture
Refrigerator inner decorative panels, oven lining sheets, stainless furniture decorative panels, cabinet textured panels.
10.7 Chemical & Environmental Protection Equipment
Sewage treatment plant walkways, desulfurization equipment auxiliary platforms, mild acid workshop anti-slip flooring.
11. Grade Comparison Chart
| Grade | Mo Content | Chloride Resistance | Weld Performance | Main Application |
| 304 | 0 | Good | Excellent | Universal decoration, indoor anti-slip floors |
| 316L | 2–3% | Excellent | Best | Coastal, marine, chemical corrosive environments |
| 304L | 0 | Good | Optimal | Frequently welded patterned plate structures |
| 430 | 0 | General | Average | Low-cost indoor decorative embossed sheets |
| 201 | 0 | Poor | Ordinary | Dry indoor low-budget decoration only |
12. Usage Notes
●Anti-corrosion limit: 304 patterned plate cannot be used for long-term seawater & salt spray environments; select 316L grade for coastal projects.
●Magnetism explanation: Slight magnetism on 304 after embossing is normal cold-working characteristic, no impact on corrosion resistance and structural strength.
●Surface protection: Mirror, colored and No.4 brushed base embossed sheets must be covered with PE protective film during cutting & transportation to avoid scratch damage.
●Welding suggestion: Thick anti-slip tread plates adopt TIG/MIG welding; pickling passivation after welding restores full anti-corrosion performance.
●Load reminder: For heavy vehicle frequent rolling platforms, select lentil or 5-bar thick checkered plate over 4mm base thickness for longer service life.
13. Executive Standards & Export Certifications
Comply with ASTM A240, ASTM A793, EN 10088-2, JIS G4305, GB/T 3280, GB/T 4237. Available supporting documents: MTC material test certificate, SGS third-party composition inspection, RoHS environmental compliance report, food-grade contact safety test report, salt spray anti-corrosion test report, fully meet global engineering & export procurement standards.
