Stainless Steel Lashing Wire is used to “lash” an overhead or “aerial” cable or wire to a supporting strand. Allin Metal produces the highest quality Stainless Steel Lashing Wire available in a variety of materials for the telecommunications, utilities, and Cable TV industries.
- A specially controlled annealing process yields a uniform,fine grain structure throughout wire length and cross section for best results
- The Creation lashing wire is packaged as 6 coils per carton for your ordering convenience
- Is available in a 430, 302, and Z6CND17.11 stainless steel alloy
Available Popular Materials With the Chemical Composition and Physical Properties Of Lasing Wire:
| GRADE | C. | Mn. | P. | S | Si | Cr. | Ni. | Mo. |
| SS430 | 0.12 | 1 | 0.04 | 0.003 | 1 | 16.00~18.00 | ||
| SS202 | 0.15 | 7.5~10.0 | 0.06 | 0.03 | 0.75 | 17.0~19.0 | 4.0~6.0 | |
| SS302 | 0.15 | 2.00 | 0.05 | 0.03 | 1.00 | 17.0~19.0 | 8.0~10.0 | |
| SS304 | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 18.0~20.0 | 8.0~10.5 | |
| SS316 | 0.03 | 2.00 | 0.05 | 0.03 | 1.00 | 16.0~18.0 | 10.0~14.0 | 2.00~3.00 |
| Yield strength (min.) | Elongation (min.) | Elongation in Area (min.) |
Reduction in Area (min.) | |||||
| 75 ksi | 520 MPa | 30 ksi | 210 Mpa | 25% | 40% | |||

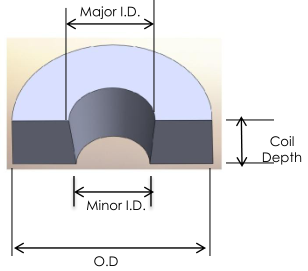

APPROXIMATE INTERIOR DIMENSIONS
 |
DIA . | MINOR I.D. | MAJOR ID | COIL DEPTH |
O.D |
| 1.6 & 1.2 mm |
51.0 mm | 60.0 mm | 46.0 mm | 139.0 mm |
| Material : | Stainless steel Lashing Wire,Bright surface |  |
| Cutting Length: | 190 mts / coil ,625ft or 325ft or as required. | |
| Dia.Tolerance: | ± 0.02 mm | |
| Tensile Strength: | 520N/mm 2 min. | |

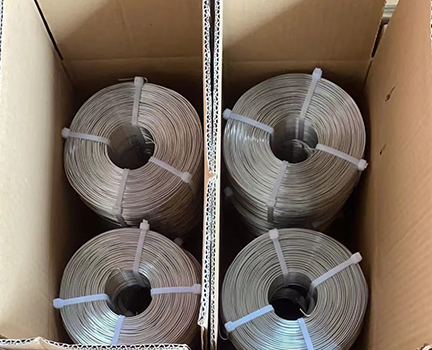

| Packing: | 8 coils per carton for 1.2mm / 4 coils per carton for 1.6mm |
Our Advantages :
- Our entire product range undergoes mandatory quality control procedures. Only after successfulb.surpassing various tests, our products are ready for supply.
c.Our product are are made from high quality stainless steel which is optimum strength,long life,corrosion resistance.Our range of products conform to the international standard
- We specialize in export of stainless steel for years’ experience with competitive price/high quality/good service/timely deliver
