Standard:JIS, AISI, ASTM, GB, DIN, EN
Main Grade:201,304,321,316,316L,309,310,310s,410,430
HS code :72224000

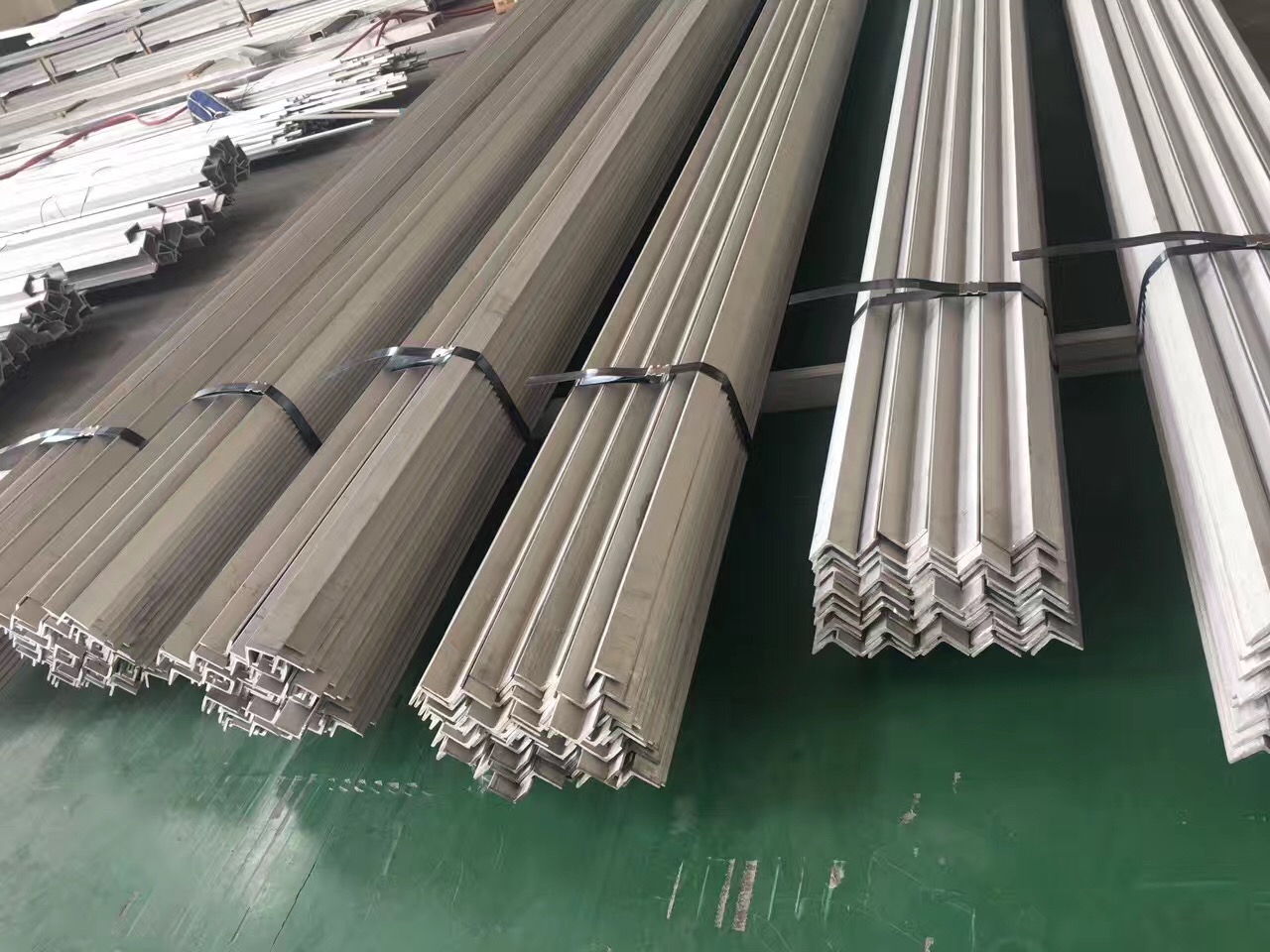

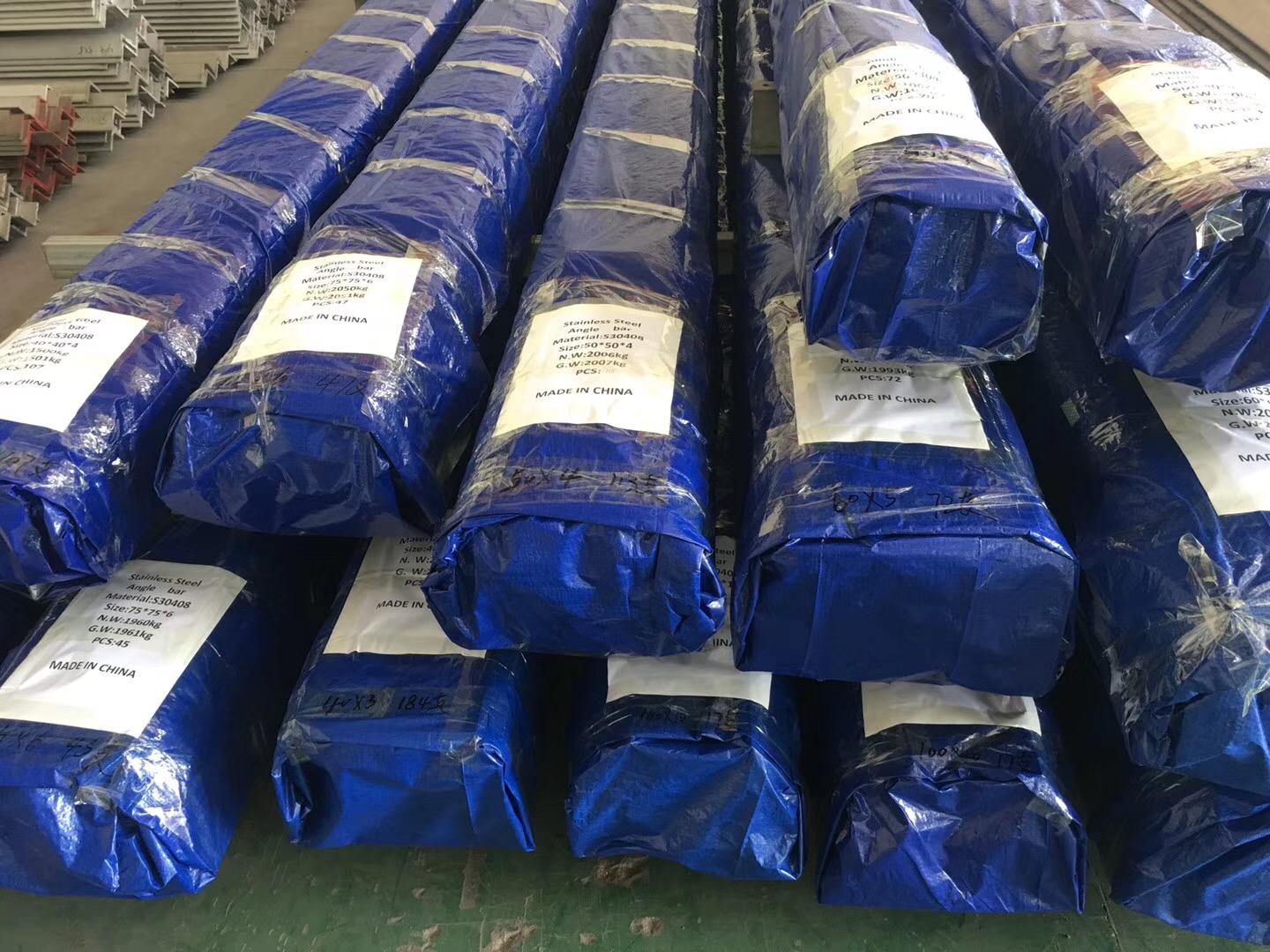

Package :Export-sea worthy packing with each bundle tied and protected.
MOQ:1Ton.
Sufficient stock for immediate shippment.
Stainless Steel 304/304L /304H angle bar Chemical Composition: Mechanical Properties :
| Grade |
C % |
Mn. % |
P % |
S % |
Si % |
Cr % |
Ni % |
| 304 |
0.08 max. |
2.00 max. |
0.045 max. |
0.03 max. |
1.00 max. |
18.0-20.0 |
8.0-10.0 |
| 304L |
0.03 max. |
2.00 max. |
0.045 max. |
0.03 max. |
1.00 max. |
18.0-20.0 |
8.0-12.0 |
| 304H |
0.04-0.10 |
2.00 max. |
0.045 max. |
0.03 max. |
1.00 max. |
18.0-20.0 |
8.0-12.0 |
Stainless Steel 304/304L /304H angle bar Mechanical Properties :
| Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
| Rockwell B (HR B) max |
Brinell (HB) max |
| 304 |
515 |
205 |
40 |
92 |
201 |
| 304L |
485 |
170 |
40 |
92 |
201 |
| 304H |
515 |
205 |
40 |
92 |
201 |
Grade Specification Comparision:
| Grade |
UNS NO |
Euronorm (No.) |
Euronorm (Name) |
Swedish SS |
Japanese JIS |
| 304 |
S30400 |
1.4301 |
X5CrNi18-10 |
2332 |
SUS304 |
| 304L |
S30403 |
1.4307 |
X2CrNi18-9 |
2352 |
SUS304L |
| 304H |
S30409 |
1.4948 |
X6CrNi18-11 |
– |
– |
Size Tolerance Of Hot Rolled Stainless Steel Equilateral angel Bar:
| Side AxB (mm) |
Side Tolarance (mm) |
Thickness |
| 3 mm |
4 mm |
5 mm |
6 mm |
7 mm |
8 mm |
9 mm |
10 mm |
11 mm |
12 mm |
| Thickness Tolerance (mm) |
| 25×25 |
±1.0 |
±0.5 |
±0.5 |
±0.5 |
|
|
|
|
|
|
|
| 30×30 |
±2.0 |
±0.5 |
±0.5 |
±0.5 |
|
|
|
|
|
|
|
| 40×40 |
±2.0 |
±0.6 |
±0.6 |
±0.6 |
±0.6 |
±0.6 |
|
|
|
|
|
| 50×50 |
±2.0 |
±0.6 |
±0.6 |
±0.6 |
±0.6 |
±0.6 |
|
|
|
|
|
| 60×60 |
±3.0 |
|
±0.6 |
±0.6 |
±0.6 |
±0.6 |
|
|
|
|
|
| 65×65 |
±3.0 |
|
|
±0.6 |
±0.6 |
±0.7 |
|
|
|
|
|
| 70×70 |
±3.0 |
|
|
±0.7 |
±0.7 |
±0.7 |
±0.7 |
±0.7 |
|
|
|
| 75×75 |
±3.0 |
|
|
|
±0.7 |
±0.7 |
±0.7 |
±0.7 |
±0.7 |
|
|
| 80×80 |
±3.0 |
|
|
|
±0.7 |
±0.7 |
±0.7 |
±0.7 |
±0.7 |
|
|
| 90×90 |
±3.0 |
|
|
|
|
±0.7 |
±0.7 |
±0.7 |
±0.8 |
±0.8 |
±0.8 |
| 100×100 |
±4.0 |
|
|
|
|
±0.7 |
±0.7 |
±0.7 |
±0.8 |
±0.8 |
±0.8 |
